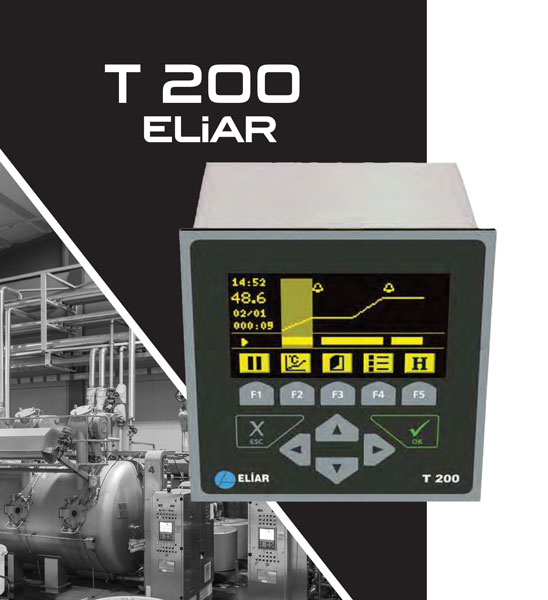

T 200 | Temperature-Time Profile Controller


T 200 is a micro processor based Ramping Controller, especially designed and developed for the automation of textile dyeing machines.

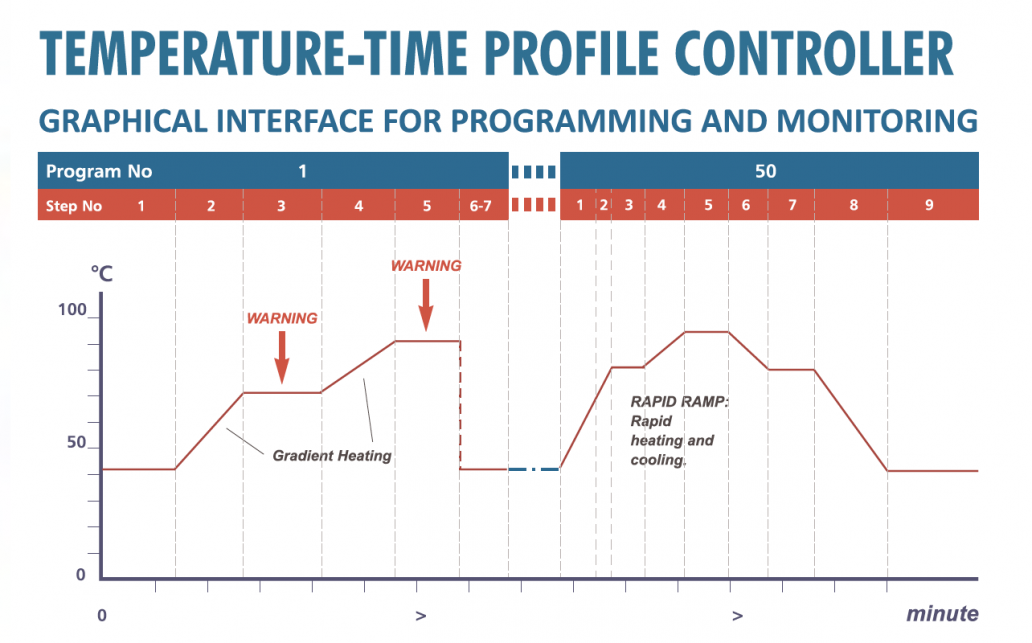

Graphical interface is used both for programming and monitoring of the dyeing process.

The implementation of T 200 is not limited to dyeing machines only. It is used in a wide range of industrial applications, where ramping control of temperature is necessary.

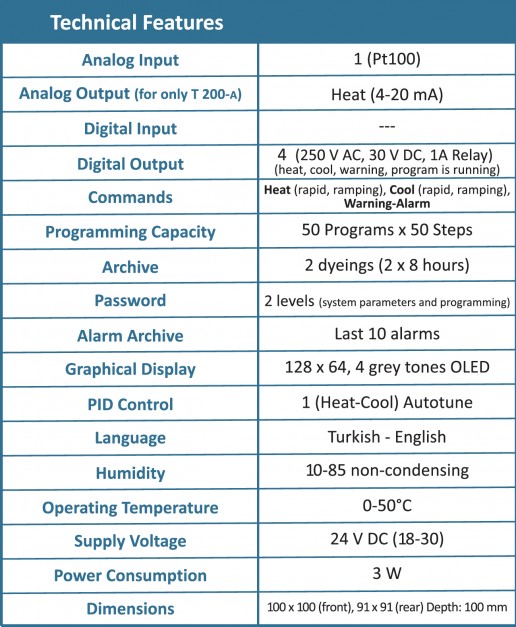

• Programming and monitoring via graphical interface
• SO Programs X SO Steps
• 128*64 OLED graphical display
• 4 digital control outputs (heat, cool, warning, program is running), 1 analog input (Ptl00)
• Autotune facility for 1 (temperature control) PID loop
• Last 8 hours monitoring of past, theoretical and realized batch processes (x2)
• Last 10 alarms archive
• 2 levels password protection 1st level: system parameters 2nd level: programming
• Selectable languages: Turkish – English


T200 Series Innovative Full Automatic Control Devices ; designed as a result of ELİAR’s 35 years of experience and engineering know-how, are ready to help you to safely and economically control your textile dyeing machines. T200 Series is produced both with hardware and software by totally ELİAR.
